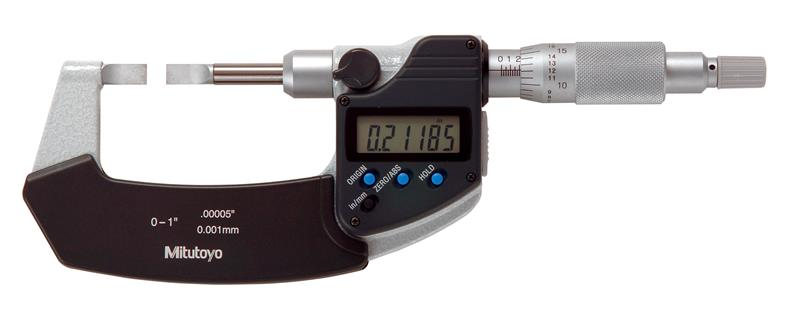

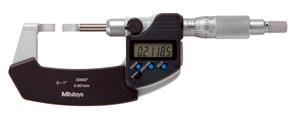

0-1 Inch, 0.00005 Inch, Digimatic Blade Micrometer, .75mm Blade Thickness, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop

  • Item Code: 422-330-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard to reach areas.
    • Speedy spindle feed of .4 In/10mm/rev.
    • With Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Finish Enamel
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Spindle Lock Y
Brand Mitutoyo
Primary Measuring Range Upper - Inch 1 In
Data Output Cable - 40 inch 05CZA662
Case Part Number 475486
Data Output Y
Data Output Cable - 80 inch 05CZA663
IP Rating IP54
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Clutch Ratchet Stop
Resolution or Graduation .00005 In
Parallelism .00012 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Range 0 - 1 In/0 - 25.4mm
Spindle Face Flat
Accuracy ±.00015 In
Individual or Set Individual
