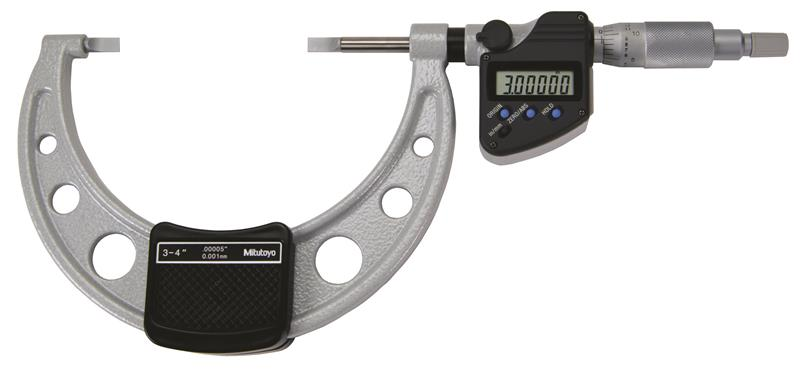

3-4 Inch, 0.00005 Inch, Digimatic Blade Micrometer, .75mm Blade Thickness, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop

  • Item Code: 422-333-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard to reach areas.
    • Speedy spindle feed of .4 In/10mm/rev.
    • With Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Range 3 - 4 In / 76.2 - 101.6mm
Primary Measuring Range Upper - Inch 4 In
Case Material Plastic Case
Clutch Ratchet Stop
Spindle Face Flat
Case Part Number 475486
Data Output Y
Finish Enamel
Accuracy ±.00015 In
Parallelism .00012 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Inch 3 In
Resolution or Graduation .00005 In
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Lower - Metric 76.2mm
Primary Measuring Range Upper - Metric 101.6mm
Spindle Lock Y
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Mechanical or Digital Digimatic
Individual or Set Individual
IP Rating IP54
