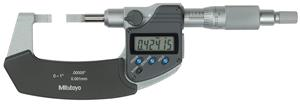

0-1 Inch, 0.00005 Inch, Digimatic Blade Micrometer, .4mm Blade Thickness, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop

  • Item Code: 422-360-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard to reach areas.
    • Speedy spindle feed of .4 In/10mm/rev.
    • With Ratchet Stop for constant measuring force.

Tech Specs

Back To Top
Clutch Ratchet Stop
Brand Mitutoyo
Finish Enamel
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Range 0 - 1 In/0 - 25.4mm
Spindle Lock Y
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Metric 25.4mm
Data Output Cable - 40 inch 05CZA662
Parallelism .00012 In
Accuracy ±.00015 In
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
Case Material Plastic Case
Individual or Set Individual
Primary Measuring Range Upper - Inch 1 In
Resolution or Graduation .00005 In
Spindle Face Flat
Case Part Number 475486
Data Output Y
IP Rating IP54
Primary (Outside Diameter) Contact Point Material Hardened Steel
