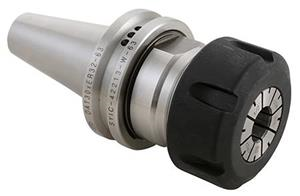

ISO 30 x ER32 x 50mm Precision CNC Router Tool Holder - Slotted Nut
- Item Code: 42213-W-50
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 1.84 |
|---|---|
| Gage Length-Face Contact (mm) | 46.8 |
| Overall Length (in) | 3.85 |
| Overall Length (mm) | 97.8 |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Gage Length (in) | 1.97 |
| Overall Diameter (in) | 1.81 |
| Overall Diameter (mm) | 46 |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Capacity Range (in) | 0.043" - 0.83" |
| Material | 8620 Steel |
| Gage Length (mm) | 50 |
| Lock Nut Diameter (in) | 1.97 |
| Lock Nut Diameter (mm) | 50 |
| Unit of Tool | Metric or Inch |
| Capacity Range (mm) | 1.1 - 21mm |
| Brand | Techniks |
| Collet Series | ER32 |
| Style | Single Ended |
| Taper | ISO30 |
| Type | V-Flange Collet Chuck |
