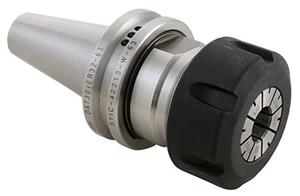

ISO 30 x ER32 x 63mm Precision CNC Router Tool Holder - Slotted Nut
- Item Code: 42213-W-63
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Gage Length (in) | 2.48 |
|---|---|
| Gage Length (mm) | 63 |
| Gage Length-Face Contact (in) | 2.35 |
| Gage Length-Face Contact (mm) | 59.8 |
| Overall Length (in) | 4.36 |
| Overall Length (mm) | 110.7 |
| Collet Series | ER32 |
| Type | V-Flange Collet Chuck |
| Brand | Techniks |
| Material | 8620 Steel |
| Style | Single Ended |
| Taper | ISO30 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Overall Diameter (in) | 1.81 |
| Overall Diameter (mm) | 46 |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Capacity Range (in) | 0.043" - 0.83" |
| Lock Nut Diameter (in) | 1.97 |
| Lock Nut Diameter (mm) | 50 |
| Unit of Tool | Metric or Inch |
| Balanced to | 25,000 RPM at G2.5 |
| Capacity Range (mm) | 1.1 - 21mm |
