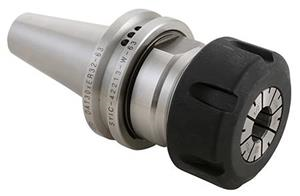

ISO 30 x ER32 x 90mm Precision CNC Router Tool Holder - Slotted Nut
- Item Code: 42213-W-90
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 3.42 |
|---|---|
| Gage Length-Face Contact (mm) | 86.8 |
| Overall Length (in) | 5.43 |
| Overall Length (mm) | 137.9 |
| Capacity Range (mm) | 1.1 - 21mm |
| Material | 8620 Steel |
| Overall Diameter (mm) | 46 |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Capacity Range (in) | 0.043" - 0.83" |
| Lock Nut Diameter (in) | 1.97 |
| Taper | ISO30 |
| Unit of Tool | Metric or Inch |
| Gage Length (in) | 3.54 |
| Brand | Techniks |
| Collet Series | ER32 |
| Lock Nut Diameter (mm) | 50 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Gage Length (mm) | 90 |
| Overall Diameter (in) | 1.81 |
