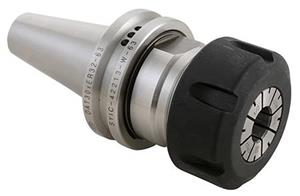

ISO 30 x ER32 x 57mm Precision CNC Router Tool Holder - Slotted Nut
- Item Code: 42215-W-57
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Gage Length (in) | 2.24 |
|---|---|
| Gage Length (mm) | 57 |
| Gage Length-Face Contact (in) | 2.12 |
| Gage Length-Face Contact (mm) | 53.8 |
| Body Diameter-Workpiece Side (mm) | 63 |
| Brand | Techniks |
| Collet Series | ER40 |
| Material | 8620 Steel |
| Style | Single Ended |
| Taper | ISO30 |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Balanced to | 25,000 RPM at G2.5 |
| Lock Nut Diameter (mm) | 63 |
| Overall Diameter (mm) | 46 |
| Overall Length (mm) | 104.9 |
| Capacity Range (mm) | 2.2 - 26mm |
| Overall Length (in) | 4.13 |
| Capacity Range (in) | 0.086" - 1.02" |
| Body Diameter-Workpiece Side (in) | 2.48 |
| Lock Nut Diameter (in) | 2.48 |
| Overall Diameter (in) | 1.81 |
