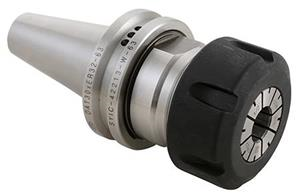

ISO 40 – ER40 - 70mm, Slotted Nut Toolholder for CNC Routers
- Item Code: 42261-W
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Gage Length-Face Contact (mm) | 66.8 |
|---|---|
| Overall Length (in) | 5.45 |
| Taper | ISO40 |
| Body Diameter-Workpiece Side (in) | 2.48 |
| Capacity Range (mm) | 2.2 - 26mm |
| Lock Nut Diameter (mm) | 63 |
| Overall Diameter (mm) | 63 |
| Overall Diameter (in) | 2.48 |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (mm) | 63 |
| Capacity Range (in) | 0.086" - 1.02" |
| Collet Series | ER40 |
| Material | 8620 Steel |
| Overall Length (mm) | 138.4 |
| Style | Single Ended |
| Lock Nut Diameter (in) | 2.48 |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Gage Length (mm) | 70 |
| Gage Length-Face Contact (in) | 2.63 |
| Gage Length (in) | 2.76 |
