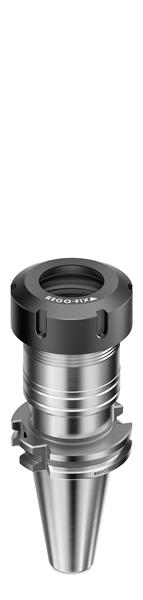

100mm XTC40 x ER16 H Collet Chuck

  • Item Code: 4240.11650
  • Brand: Rego-Fix
  • Unit Size: 1

Description

Features

Back To Top
    • T.I.R. <3 µ¼m ID Taper to OD Taper
    • Taper Accuracy AT3, better spindle-to-holder fit and accuracy
    • Surface finish max. RA 0.25, higher clamping force and higher transferable torque
    • ID Chip Hole per DIN 69873 with 10mm diameter
    • Type H collet holders are ready to accept Hi-Q balancing rings which allow precision balancing of the system including cutting tool up to 80000 min-1 depending on the balancing rings used
    • Vibration dampening for best machining results

Tech Specs

Back To Top
Brand Rego-Fix
Nose Diameter 28mm
Collet Style ER16
Mount TC 40
Wrench Number 7112.16010
Gage Length 100mm
Type TC/ER Toolholder
