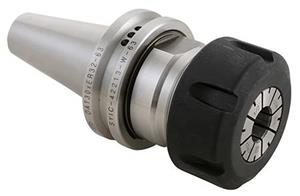

ISO 30 – ER11 - 100mm, Mini Nut Toolholder for CNC Routers
- Item Code: 42407-W
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Collet Series | ER11 |
|---|---|
| Gage Length-Face Contact (in) | 3.81 |
| Gage Length-Face Contact (mm) | 96.8 |
| Lock Nut Diameter (in) | 0.75 |
| Overall Length (in) | 5.82 |
| Capacity Range (mm) | 0.5 - 7.1mm |
| Overall Diameter (mm) | 46 |
| Lock Nut Diameter (mm) | 19.1 |
| Overall Diameter (in) | 1.81 |
| Gage Length (in) | 3.94 |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (mm) | 19 |
| Gage Length (mm) | 100 |
| Taper | ISO30 |
| Brand | Techniks |
| Material | 8620 Steel |
| Overall Length (mm) | 147.8 |
| Body Diameter-Workpiece Side (in) | 0.748 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Capacity Range (in) | 0.019" - 0.28" |
| Unit of Tool | Metric or Inch |
