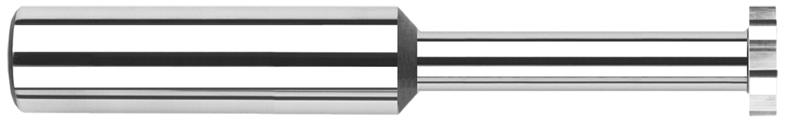

0.1875 in. (3/16) Cutter Diameter x 0.0400 in. Width x 0.5620 in. (9/16) Neck Length 6 Flute Carbide Square Keyseat Cutter

  • Item Code: 43740
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Diameter 3/16"
Coating/Finish None
Material Solid Carbide
Overall Length 2.0000" (2)
Shank Diameter 0.1875" (3/16)
Cutter Width 0.0400"
Decimal Diameter 0.1875"
Neck Diameter 0.0930" (3/32)
Radial Depth of Cut 0.0370"
Reach Multiple (3x)
Type I
Neck Length 0.5620" (9/16)
Number of Flutes 6
Brand Harvey Tool
