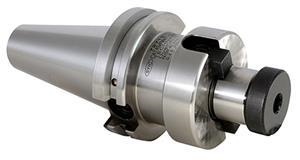

CAT50 x FMA 1-1/4 x 3-1/2 Inch DualDRIVE Face Mill Arbor
- Item Code: 44.151.72.350
- Brand: Techniks
- Unit Size: 1
Description
DualDRIVE Spindles offer a one piece design that is compatible with both dual contact and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R. This extends feed rates up to 20% and extends tool life while reducing scrap.
Dual-Contact Spindles: Dual-Contact is a spindle option offered by some machine tool builders. Dual-contact means both the toolholder taper and the flange make contact with the spindle. The dual-contact provides increased rigidity and accuracy during machining. Use Techniks DualDRIVE holders if your machine has a dual-contact spindle.
Tech Specs
Back To Top| Gage Length-Face Contact (mm) | 85.45 |
|---|---|
| Overall Diameter (in) | 3.875 |
| Gage Length (mm) | 88.9 |
| Pilot Length (in) | 0.69 |
| Hub Diameter (mm) | 31.75 |
| Overall Diameter (mm) | 98.4 |
| Body Width (mm) | 69.9 |
| Pilot Length (mm) | 17.5 |
| Type | DualDRIVE Face Mill Arbor |
| Gage Length (in) | 3.5 |
| Gage Length-Face Contact (in) | 3.364 |
| Hub Diameter (in) | 1.25 |
| Body Width (in) | 2.75 |
| Coolant Supply | Optional through Arbor Screw |
| Style | Single Ended |
| Brand | Techniks |
| Material | 8620 Steel |
| Taper Type | CAT50 |
