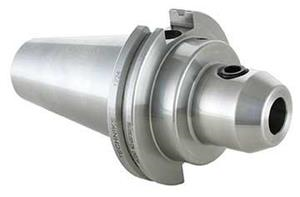

CAT50 x SLN 3/4 Inch x 3.0 Inch DualDRIVE End Mill Holder
- Item Code: 44.653.64.300
- Brand: Techniks
- Unit Size: 1
Description
DualDRIVE Spindles offer a one piece design that is compatible with both dual contact and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R.. Techniks End Mills offer an Industry Leading high precision bore at H5 tolerance, are lab certified, and are balanced at 15,000 RPM.
Tech Specs
Back To Top| Bore Inside Diameter (mm) | 19.1 |
|---|---|
| Brand | Techniks |
| Gage Length (mm) | 76.2 |
| Material | 8620 Steel |
| Nose Diameter (in) | 1.75 |
| Nose Diameter (mm) | 44.5 |
| Overall Length (in) | 7 |
| Bore Inside Diameter (in) | 0.75 |
| Gage Length (in) | 3 |
| Overall Length (mm) | 177.8 |
| Style | Single End DualDRIVE |
| Type | End Mill Holder |
| Taper Type | CAT50 |
