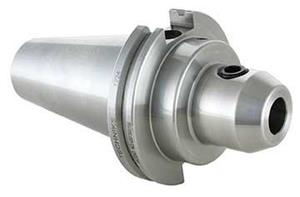

CAT50 x SLN 1-1/4 Inch x 8.0 Inch DualDRIVE End Mill Holder
- Item Code: 44.653.72.800
- Brand: Techniks
- Unit Size: 1
Description
DualDRIVE Spindles offer a one piece design that is compatible with both dual contact and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R.. Techniks End Mills offer an Industry Leading high precision bore at H5 tolerance, are lab certified, and are balanced at 15,000 RPM.
Tech Specs
Back To Top| Gage Length (mm) | 203.2 |
|---|---|
| Style | Single End DualDRIVE |
| Taper Type | CAT50 |
| Overall Length (in) | 12 |
| Type | End Mill Holder |
| Gage Length (in) | 8 |
| Nose Diameter (mm) | 63.5 |
| Material | 8620 Steel |
| Bore Inside Diameter (in) | 1.25 |
| Bore Inside Diameter (mm) | 31.8 |
| Brand | Techniks |
| Nose Diameter (in) | 2.5 |
| Overall Length (mm) | 304.8 |
