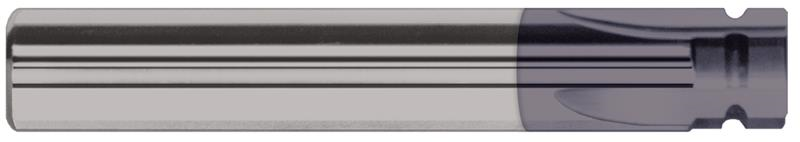

0.0394 in. Radius x 0.2500 in. (1/4) Cutter Diameter 4 Flute AlTiN Coated Carbide Concave Radius End Mill

  • Item Code: 4591M-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 4 Flutes
    • Cutting on OD and radius only (non end-cutting)
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.2500"
Fractional Cutting Diameter 1/4"
Number of Flutes 4
Radius Decimal 0.0394"
Material Solid Carbide
Coating AlTiN
Radius Center 0.1644"
Shank Diameter 0.2500" (1/4)
Brand Harvey Tool
Length of Cut 0.3290"
Overall Length 2-1/2"
