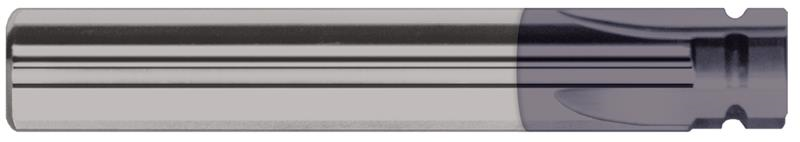

0.0200 in. Radius x 0.2500 in. (1/4) Cutter Diameter 4 Flute AlTiN Coated Carbide Concave Radius End Mill

  • Item Code: 45920-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 4 Flutes
    • Cutting on OD and radius only (non end-cutting)
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.2500"
Coating AlTiN
Number of Flutes 4
Radius Center 0.1450"
Radius Decimal 0.0200"
Brand Harvey Tool
Overall Length 2-1/2"
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
Fractional Cutting Diameter 1/4"
Length of Cut 0.2810" (9/32)
