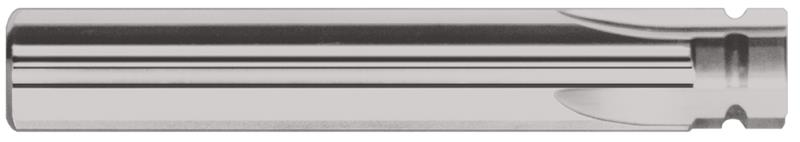

0.0625 in. (1/16) Radius x 0.3750 in. (3/8) Cutter Diameter 4 Flute Carbide Concave Radius End Mill

  • Item Code: 45962
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 4 Flutes
    • Cutting on OD and radius only (non end-cutting)
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 4
Overall Length 2-1/2"
Material Solid Carbide
Radius Fractional 1/16"
Brand Harvey Tool
Coating None
Fractional Cutting Diameter 3/8"
Radius Center 0.1875" (3/16)
Decimal Cutting Diameter 0.3750"
Length of Cut 0.3750" (3/8)
Radius Decimal 0.0625"
Shank Diameter 0.3750" (3/8)
