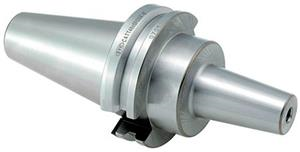

CAT40 x 1.0 Inch - 4.0 Inch DualDRIVE ShrinkFIT Holder with CoolFLEX
- Item Code: 46.651.68.400
- Brand: Techniks
- Unit Size: 1
Description
CoolFLEX holders allow for coolant-thru the spindle or flange. New one-piece design for dual contact spindles. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Features
Back To Top- Techniks Certified for dual contact spindles
- High precision bore for less chatter and better tool life
- Taper ground to AT3 tolerance for maximum spindle contact
Tech Specs
Back To Top| Nose Diameter (in) | 1.811 |
|---|---|
| Body Diameter (mm) | 53 |
| Gage Length-Face Contact (mm) | 98.43 |
| Body Diameter (in) | 2.087 |
| Nose Diameter (mm) | 46 |
| Brand | Techniks |
| Gage Length (in) | 4 |
| Gage Length-Face Contact (in) | 3.88 |
| Overall Diameter (in) | 2.5 |
| Overall Length (in) | 6.69 |
| Shank Range (in) | Exact Size |
| Collet Series | N/A |
| Gage Length (mm) | 101.6 |
| Material | H13 Steel |
| Mount | CAT40 |
| Overall Length (mm) | 169.85 |
| Shank Range (mm) | Exact Size |
| Style | DualDRIVE with CoolFLEX |
| Type | ShrinkFIT Tool Holder |
| Overall Diameter (mm) | 63.5 |
| Unit of Tool | Inch |
| Shank Size (in) | 1 |
| Shank Size (mm) | 25.4 |
