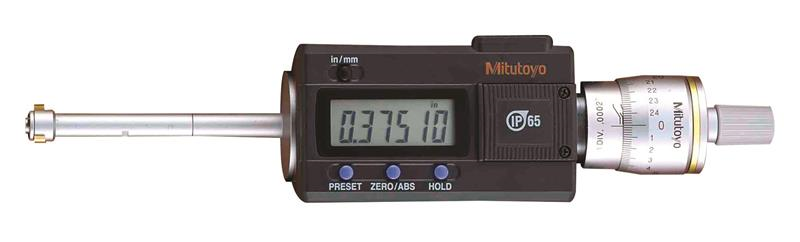

0.425 Inch - 0.5 Inch, 0.00005 Inch, Digimatic Holtest, Titanium Nitride Coated Contact Points, With SPC Output, Ratchet Stop

  • Item Code: 468-263
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Case Part Number 04MAA429
IP Rating IP65
Primary Measuring Range Lower - Metric 10.795mm
Primary Measuring Range Upper - Inch .5 In
Range .425 - .5 In / 10.795 - 12.7mm
Resolution or Graduation .00005 In
Spindle Lock N
Data Output Y
Accuracy ±.0001 In
Case Material Plastic Case
Clutch Ratchet Stop
Primary Measuring Range Upper - Metric 12.7mm
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Lower - Inch .425 In
Brand Mitutoyo
Mechanical or Digital Digimatic
Individual or Set Individual
Primary (Outside Diameter) Contact Point Material Titanium Nitride
