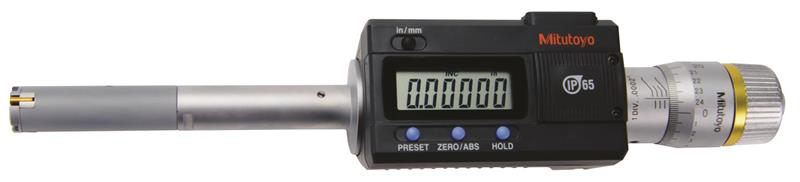

0.5 Inch - 0.65 Inch, 0.00005 Inch, Digimatic Holtest, Titanium Nitride Coated Contact Points, With SPC Output, Ratchet Stop

  • Item Code: 468-264
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 12.7mm
Primary Measuring Range Upper - Inch .65 In
Primary Measuring Range Upper - Metric 16.51mm
Range .5 - .65 In / 12.7 - 16.51mm
Clutch Ratchet Stop
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Data Output Y
Data Output Cable - 80 inch 05CZA663
Brand Mitutoyo
Case Part Number 04MAA429
Mechanical or Digital Digimatic
Individual or Set Individual
IP Rating IP65
Spindle Lock N
Accuracy ±.0001 In
Case Material Plastic Case
Resolution or Graduation .00005 In
Data Output Cable - 40 inch 05CZA662
Primary Measuring Range Lower - Inch .5 In
