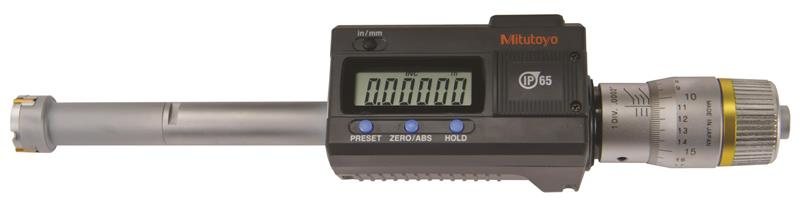

0.65 Inch - 0.8 Inch, 0.00005 Inch, Digimatic Holtest, Titanium Nitride Coated Contact Points, With SPC Output, Ratchet Stop

  • Item Code: 468-265
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 16.51mm
Primary Measuring Range Upper - Metric 20.32mm
Range .65 - .8 In / 16.51 - 20.32mm
Data Output Cable - 80 inch 05CZA663
Individual or Set Individual
IP Rating IP65
Primary Measuring Range Upper - Inch .8 In
Resolution or Graduation .00005 In
Spindle Lock N
Data Output Cable - 40 inch 05CZA662
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Case Material Plastic Case
Primary Measuring Range Lower - Inch .65 In
Case Part Number 04MAA429
Clutch Ratchet Stop
Mechanical or Digital Digimatic
Accuracy ±.0001 In
Data Output Y
Brand Mitutoyo
