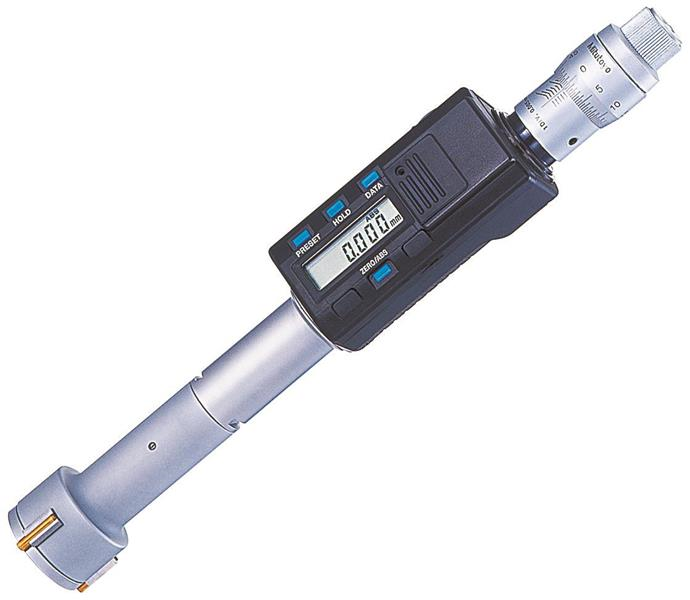

0.8 Inch - 1 Inch, 0.00005 Inch, Digimatic Holtest, Titanium Nitride Coated Contact Points, With SPC Output, Ratchet Stop

  • Item Code: 468-266
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Case Part Number 04MAA430
Primary Measuring Range Lower - Metric 20.32mm
Range .8 - 1 In / 20.32 - 25.4mm
Case Material Plastic Case
Primary Measuring Range Upper - Inch 1 In
Data Output Cable - 40 inch 05CZA662
Individual or Set Individual
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Brand Mitutoyo
Data Output Y
Data Output Cable - 80 inch 05CZA663
IP Rating IP65
Primary Measuring Range Lower - Inch .8 In
Resolution or Graduation .00005 In
Spindle Lock N
Mechanical or Digital Digimatic
Clutch Ratchet Stop
Primary Measuring Range Upper - Metric 25.4mm
Accuracy ±.00015 In
