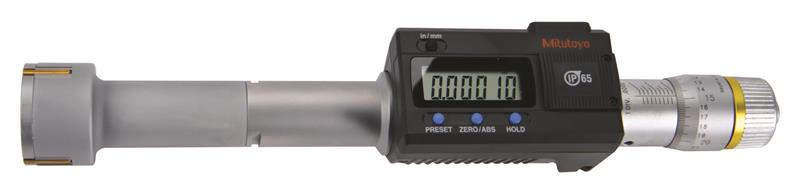

1.2 Inch - 1.6 Inch, 0.00005 Inch, Digimatic Holtest, Titanium Nitride Coated Contact Points, With SPC Output, Ratchet Stop

  • Item Code: 468-268
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 30.48mm
Primary Measuring Range Upper - Metric 40.64mm
Range 1.2 - 1.6 In / 30.48 - 40.64mm
Data Output Y
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Case Material Plastic Case
Accuracy ±.00015 In
Primary Measuring Range Lower - Inch 1.2 In
Primary Measuring Range Upper - Inch 1.6 In
Case Part Number 04MAA449
Clutch Ratchet Stop
IP Rating IP65
Resolution or Graduation .00005 In
Spindle Lock N
Individual or Set Individual
Brand Mitutoyo
Mechanical or Digital Digimatic
