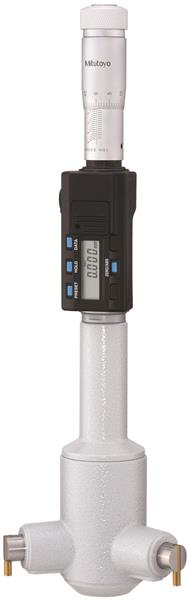

2.5 Inch - 3 Inch, 0.00005 Inch, Digimatic Holtest, Titanium Nitride Coated Contact Points, With SPC Output, Ratchet Stop

  • Item Code: 468-271
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 63.5mm
Range 2.5 - 3 In / 63.5 - 76.2mm
Data Output Y
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Case Part Number 04MAA450
IP Rating IP65
Primary Measuring Range Lower - Inch 2.5 In
Primary Measuring Range Upper - Inch 3 In
Primary Measuring Range Upper - Metric 76.2mm
Resolution or Graduation .00005 In
Spindle Lock N
Case Material Plastic Case
Clutch Ratchet Stop
Accuracy ±.00015 In
Brand Mitutoyo
Mechanical or Digital Digimatic
Individual or Set Individual
