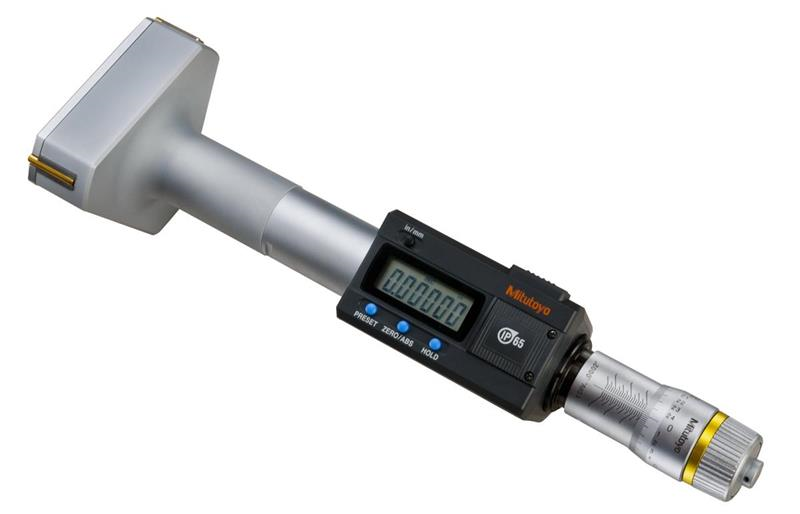

3 Inch - 3.5 Inch, 0.00005 Inch, Digimatic Holtest, Titanium Nitride Coated Contact Points, With SPC Output, Ratchet Stop

  • Item Code: 468-272
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 76.2mm
Primary Measuring Range Upper - Metric 88.9mm
Range 3 - 3.5 In / 76.2 - 88.9mm
Case Material Plastic Case
Clutch Ratchet Stop
Data Output Y
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Accuracy ±.00015 In
IP Rating IP65
Primary Measuring Range Lower - Inch 3 In
Resolution or Graduation .00005 In
Spindle Lock N
Case Part Number 04MAA450
Data Output Cable - 40 inch 05CZA662
Mechanical or Digital Digimatic
Brand Mitutoyo
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Upper - Inch 3.5 In
Individual or Set Individual
