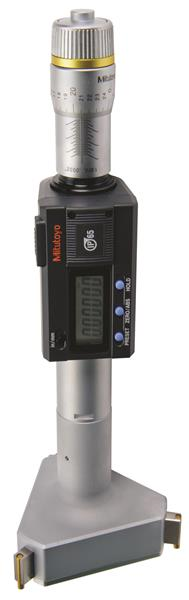

3.5 Inch - 4 Inch, 0.00005 Inch, Digimatic Holtest, Titanium Nitride Coated Contact Points, With SPC Output, Ratchet Stop

  • Item Code: 468-273
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 88.9mm
Range 3.5 - 4 In / 88.9 - 101.6mm
Individual or Set Individual
IP Rating IP65
Primary Measuring Range Upper - Inch 4 In
Resolution or Graduation .00005 In
Spindle Lock N
Brand Mitutoyo
Case Part Number 04MAA450
Mechanical or Digital Digimatic
Primary Measuring Range Upper - Metric 101.6mm
Case Material Plastic Case
Data Output Cable - 40 inch 05CZA662
Clutch Ratchet Stop
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Primary Measuring Range Lower - Inch 3.5 In
Data Output Y
Accuracy ±.00015 In
Data Output Cable - 80 inch 05CZA663
