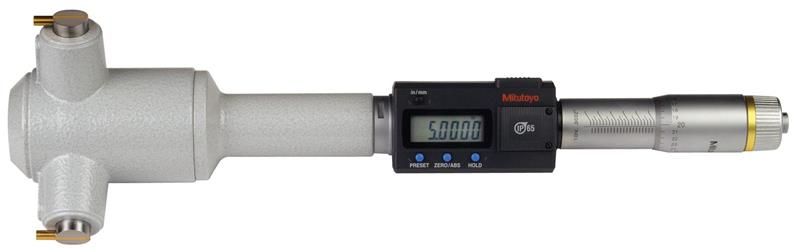

4 Inch - 5 Inch, 0.00005 Inch, Digimatic Holtest, Titanium Nitride Coated Contact Points, With SPC Output, Ratchet Stop

  • Item Code: 468-274
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Case Part Number 475766
Primary Measuring Range Lower - Metric 101.6mm
Primary Measuring Range Upper - Inch 5 In
Primary Measuring Range Upper - Metric 127mm
Range 4 - 5 In / 101.6 - 127mm
Accuracy ±.00025 In
Data Output Cable - 80 inch 05CZA663
Individual or Set Individual
IP Rating IP65
Spindle Lock N
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 4 In
Case Material Wooden Case
Clutch Ratchet Stop
Resolution or Graduation .0001 In
Data Output Cable - 40 inch 05CZA662
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Brand Mitutoyo
Data Output Y
