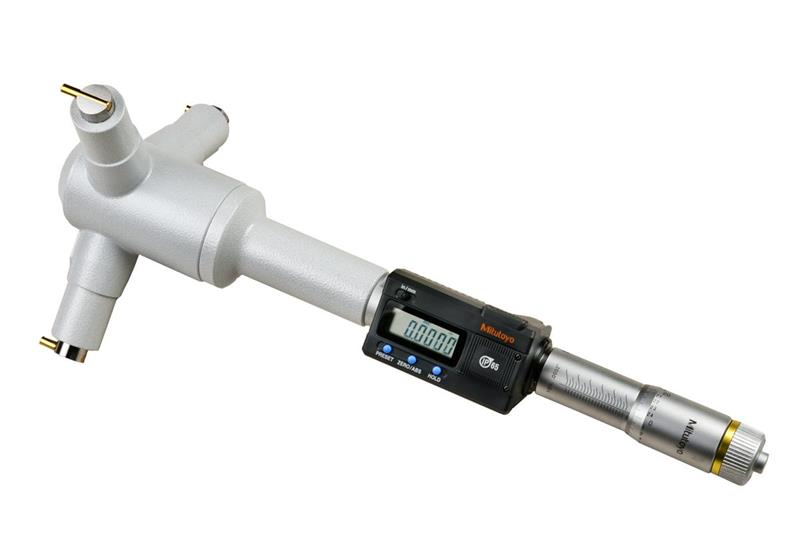

6 Inch - 7 Inch, 0.0001 Inch, Digimatic Holtest, With SPC Output, Ratchet Stop

  • Item Code: 468-276
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Range 6 - 7 In / 152.4 - 177.8mm
Data Output Y
Data Output Cable - 40 inch 05CZA662
Data Output Cable - 80 inch 05CZA663
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Primary Measuring Range Lower - Metric 152.4mm
Primary Measuring Range Upper - Inch 7 In
Brand Mitutoyo
Mechanical or Digital Digimatic
Accuracy ±.00025 In
Individual or Set Individual
Primary Measuring Range Upper - Metric 177.8mm
Primary Measuring Range Lower - Inch 6 In
IP Rating IP65
Spindle Lock N
Case Material Wooden Case
Case Part Number 475767
Clutch Ratchet Stop
Resolution or Graduation .0001 In
