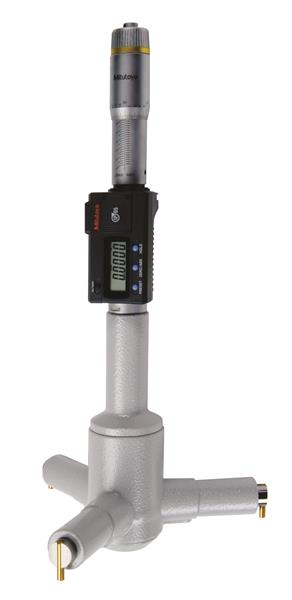

7 Inch - 8 Inch, 0.0001 Inch, Digimatic Holtest, With SPC Output, Ratchet Stop

  • Item Code: 468-277
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Case Part Number 475767
Primary Measuring Range Lower - Metric 177.8mm
Case Material Wooden Case
Clutch Ratchet Stop
Data Output Cable - 40 inch 05CZA662
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Primary Measuring Range Lower - Inch 7 In
Range 7 - 8 In / 177.8 - 203.2mm
Individual or Set Individual
IP Rating IP65
Spindle Lock N
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary Measuring Range Upper - Inch 8 In
Accuracy ±.00025 In
Data Output Y
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Upper - Metric 203.2mm
Resolution or Graduation .0001 In
