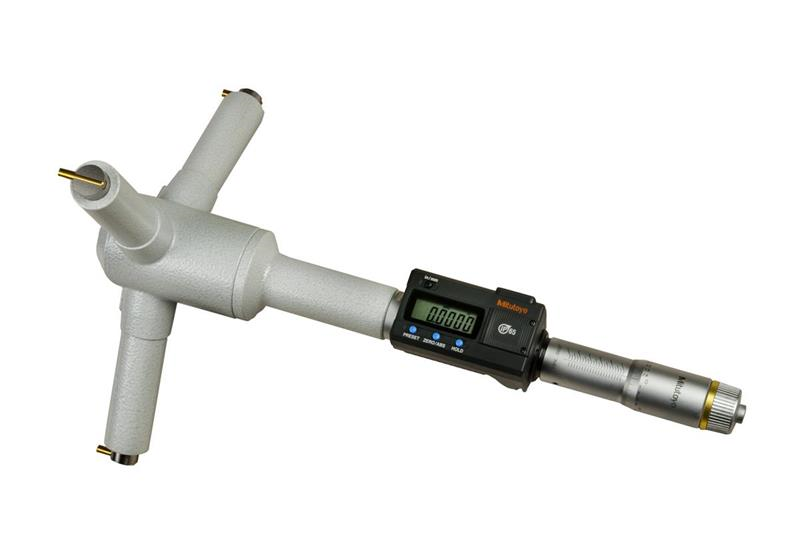

9 Inch - 10 Inch, 0.0001 Inch, Digimatic Holtest, With SPC Output, Ratchet Stop

  • Item Code: 468-279
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Case Part Number 475768
Primary Measuring Range Lower - Metric 228.6mm
Primary Measuring Range Upper - Metric 254mm
Range 9 - 10 In / 228.6 - 254mm
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Accuracy ±.00025 In
Data Output Y
Data Output Cable - 40 inch 05CZA662
Brand Mitutoyo
Individual or Set Individual
Mechanical or Digital Digimatic
Data Output Cable - 80 inch 05CZA663
IP Rating IP65
Primary Measuring Range Upper - Inch 10 In
Spindle Lock N
Case Material Wooden Case
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 9 In
Resolution or Graduation .0001 In
