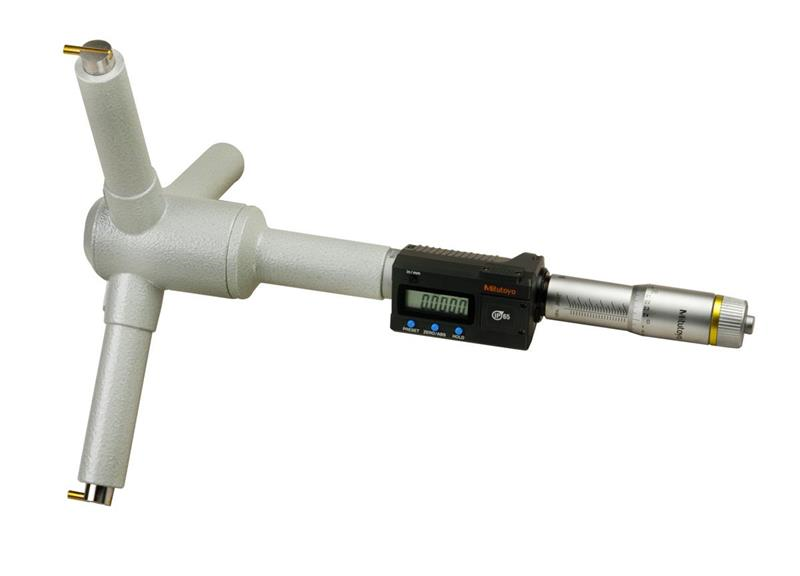

10 Inch - 11 Inch, 0.0001 Inch, Digimatic Holtest, With SPC Output, Ratchet Stop

  • Item Code: 468-280
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • TiN coated measuring contact points provide excellent durability and impact resistance and allow the insturment to mesure to the bottom of a blind hole.
    • Large LCD readout.
    • Ratchet Stop for constant force.

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 254mm
Primary Measuring Range Upper - Inch 11 In
Range 10 - 11 In / 254 - 279.4mm
Resolution or Graduation .0001 In
Individual or Set Individual
IP Rating IP65
Primary Measuring Range Lower - Inch 10 In
Spindle Lock N
Case Material Wooden Case
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Clutch Ratchet Stop
Case Part Number 475769
Data Output Cable - 40 inch 05CZA662
Mechanical or Digital Digimatic
Brand Mitutoyo
Data Output Cable - 80 inch 05CZA663
Primary Measuring Range Upper - Metric 279.4mm
Accuracy ±.00025 In
Data Output Y
