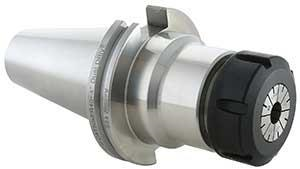

CAT5 x ER32 x 8.0 Inch DualDRIVE Coolant-Thru Spindle or Flange (DIN B) Tool Holder
- Item Code: 47.122.32.800
- Brand: Techniks
- Unit Size: 1
Description
DualDRIVE holders are compatible with Dual-Contact spindle designs and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R.. Techniks DualDRIVE Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. Each holder is Techniks Certified for balance and accuracy and comes with its individual lab report. DualDRIVE holders are coolant capable through either the spindle or the flange (DIN B). The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths.
Features
Back To Top- Techniks Certified for dual contact spindles
- Coolant-thru spindle or thru flang (Din B)
- Balanced to 25,000 RPM at G2.5
Tech Specs
Back To Top| Collet Series | ER32 |
|---|---|
| Gage Length (in) | 8 |
| Lock Nut Diameter (in) | 1.97 |
| Lock Nut Diameter (mm) | 50 |
| Overall Diameter (mm) | 98.43 |
| Unit of Tool | Metric or Inch |
| Style | Single Ended DualDRIVE |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Capacity Range (mm) | 1.1 - 21mm |
| Overall Length (in) | 12.01 |
| Overall Length (mm) | 305.1 |
| Taper | CAT50 |
| Brand | Techniks |
| Gage Length-Face Contact (in) | 7.87 |
| Type | DualDRIVE Collet Chuck |
| Balanced to | 25,000 RPM at G2.5 |
| Capacity Range (in) | 0.043" - 0.83" |
| Gage Length (mm) | 203.2 |
| Gage Length-Face Contact (mm) | 199.8 |
| Material | 8620 Steel |
| Overall Diameter (in) | 3.88 |
