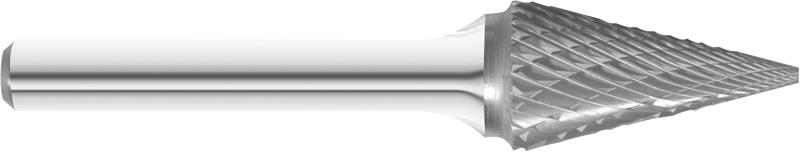

1/4 (.2500) Cone Shape (SM-2) Double Cut Solid Carbide Burr (Rotary File)
- Item Code: 47259-FULLERTON
- Brand: Fullerton
- Unit Size: 1
Description
Fullerton's solid carbide burrs (rotary files) are available in a wide range of shapes, sizes and unique flute geometries. Rotary files are often used to clean (deburr) castings.
Features
Back To Top- Solid Carbide Head
- Industry Standard forms: SA, SB, SC, SD, SE, SF, SG, SM, SL, SH, SK, SJ, SN, and SNE
- Available in several cuts to meet your needs: Single Cut, Double Cut, Chip Breaker, Diamond, Fast Mill Cut (Aluma Cut)
- Fine and Coarse Available on Quote
- .2500�� Shank Tools provided with Steel Shanks
Tech Specs
Back To Top| Decimal Cutting Diameter | 0.2500" |
|---|---|
| Flute Length (mm) | 19.05 |
| Weldon Flat | No |
| End Type | SE |
| Tool Set | 60015 |
| Direction of Cut | RH |
| No. of Flutes/Teeth | 17 |
| Shank Diameter (Inch) | 1/4 |
| Burr Shape | Cone - Double Cut |
| Cut Name | Double |
| Cut Number | 3 |
| Flute Spiral Direction | RH |
| Point Include Angle (Degrees) | 14 |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 2.0000 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2 |
| Series | BURR |
| Shank Diameter (mm) | 6.35 |
| Tool Number | SM-2 |
| Brand | Fullerton |
| Fractional Cutting Diameter | 1/4" |
| Metric/Inch | Inch |
| Overall Length (mm) | 50.80 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shape Identifier | SM-2 |
| Coating/Finish | None |
| Flute Length (Decimal Inch) | 0.7500 |
| Flute Length (Inch) | 3/4 |
| Metric Cutting Diameter | 6.35 mm |
