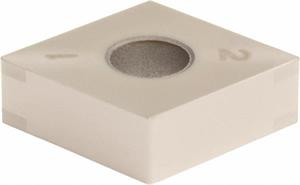

CNGA431 BNC200 Grade PCBN Turning Insert

  • Item Code: 4NCCNGA431HS BNC200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Inscribed Circle 0.5000 Inch
Insert Type Negative
Max Depth of Cut 0.0150 Inch
Applicable Materials Hardened Steel, Cast Iron
Coating/Finish Coated
Material PCBN
Number of Edges 4
Chipbreaker Type Coated Mini Tip
Corner Radius 0.0156 Inch
Insert Size 431
Shape Diamond
Included Angle 80
Grade BNC200
Insert Style CNGA
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Thickness 0.1875 Inch
Brand Sumitomo
Product Name Turning Insert
