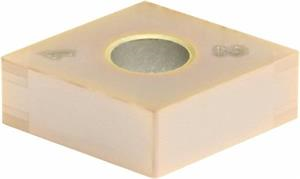

INSERT CBN TIPPED GR BNC100

  • Item Code: 4NCCNGA431W BNC100
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Grade BNC100
Chipbreaker Type Coated Mini Tip
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Number of Edges 4
Coating/Finish Coated
Included Angle 80
Inscribed Circle 0.5000 Inch
Max Depth of Cut 0.0150 Inch
Material PCBN
Applicable Materials Hardened Steel, Cast Iron
Brand Sumitomo
Corner Radius 0.0156 Inch
Insert Size 431
Insert Style CNGA
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
