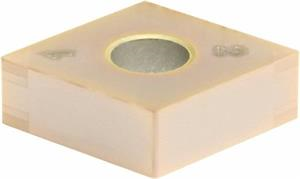

CNGA431 BNC160 Grade PCBN Turning Insert

  • Item Code: 4NCCNGA431W BNC160
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Shape Diamond
Chipbreaker Type Coated Mini Tip
Corner Radius 0.0156 Inch
Included Angle 80
Insert Size 431
Brand Sumitomo
Grade BNC160
Max Depth of Cut 0.0150 Inch
Inscribed Circle 0.5000 Inch
Insert Style CNGA
Insert Type Negative
Material PCBN
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Number of Edges 4
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Hardened Steel, Cast Iron
Coating/Finish Coated
