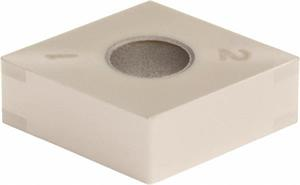

CNGA431 BNC200 Grade PCBN Turning Insert

  • Item Code: 4NCCNGA431W-BNC200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Coating/Finish Coated
Included Angle 80
Inscribed Circle 0.5000 Inch
Insert Type Negative
Grade BNC200
Max Depth of Cut 0.0150 Inch
Number of Edges 4
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type Coated Mini Tip
Corner Radius 0.0156 Inch
Insert Size 431
Shape Diamond
Applicable Materials Hardened Steel, Cast Iron
Insert Style CNGA
Relief Angle 0 Degree
Material PCBN
Mounting Hole Diameter 0.2031 Inch
Brand Sumitomo
