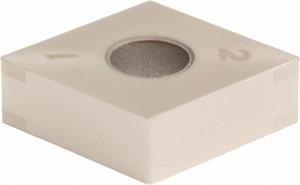

CNGA432 BNC200 Grade PCBN Turning Insert

  • Item Code: 4NCCNGA432HS BNC200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Applicable Materials Hardened Steel, Cast Iron
Brand Sumitomo
Insert Size 432
Material PCBN
Corner Radius 0.0313 Inch
Inscribed Circle 0.5000 Inch
Max Depth of Cut 0.0150 Inch
Chipbreaker Type Coated Mini Tip
Grade BNC200
Shape Diamond
Insert Style CNGA
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish Coated
Number of Edges 4
Product Name Turning Insert
Thickness 0.1875 Inch
Included Angle 80
