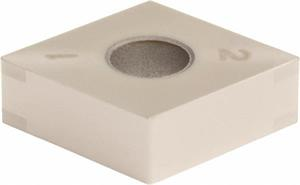

CNGA432 BNC200 Grade PCBN Turning Insert

  • Item Code: 4NCCNGA432LS-BNC200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Max Depth of Cut 0.0150 Inch
Grade BNC200
Corner Radius 0.0313 Inch
Insert Size 432
Insert Style CNGA
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Hardened Steel, Cast Iron
Coating/Finish Coated
Number of Edges 4
Insert Type Negative
Chipbreaker Type Coated Mini Tip
Included Angle 80
Inscribed Circle 0.5000 Inch
Shape Diamond
Material PCBN
