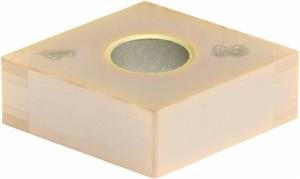

CNGA432 BNC100 Grade PCBN Turning Insert

  • Item Code: 4NCCNGA432W BNC100
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Number of Edges 4
Coating/Finish Coated
Insert Type Negative
Corner Radius 0.0313 Inch
Grade BNC100
Insert Style CNGA
Relief Angle 0 Degree
Applicable Materials Hardened Steel, Cast Iron
Insert Size 432
Material PCBN
Mounting Hole Diameter 0.2031 Inch
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Brand Sumitomo
Chipbreaker Type Coated Mini Tip
Max Depth of Cut 0.0150 Inch
Shape Diamond
Included Angle 80
Product Name Turning Insert
