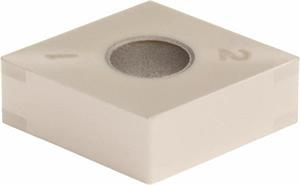

CNGA432 BNC200 Grade PCBN Turning Insert

  • Item Code: 4NCCNGA432W BNC200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Chipbreaker Type Coated Mini Tip
Corner Radius 0.0313 Inch
Grade BNC200
Number of Edges 4
Thickness 0.1875 Inch
Applicable Materials Hardened Steel, Cast Iron
Product Name Turning Insert
Coating/Finish Coated
Insert Size 432
Insert Style CNGA
Insert Type Negative
Material PCBN
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Max Depth of Cut 0.0150 Inch
Included Angle 80
Inscribed Circle 0.5000 Inch
Shape Diamond
