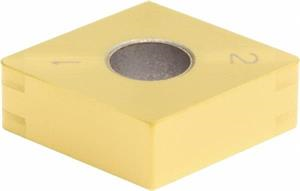

CNGA432 BNC300 Grade PCBN Turning Insert

  • Item Code: 4NCCNGA432W-BNC300
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Chipbreaker Type Coated Mini Tip
Included Angle 80
Shape Diamond
Applicable Materials Hardened Steel, Cast Iron
Brand Sumitomo
Material PCBN
Corner Radius 0.0313 Inch
Inscribed Circle 0.5000 Inch
Max Depth of Cut 0.0150 Inch
Coating/Finish Coated
Number of Edges 4
Product Name Turning Insert
Grade BNC300
Insert Size 432
Insert Style CNGA
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Thickness 0.1875 Inch
