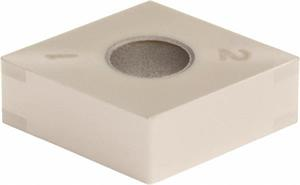

CNGA433 BNC200 Grade PCBN Turning Insert

  • Item Code: 4NCCNGA433W BNC200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Grade BNC200
Corner Radius 0.0469 Inch
Shape Diamond
Thickness 0.1875 Inch
Product Name Turning Insert
Number of Edges 4
Applicable Materials Hardened Steel, Cast Iron
Coating/Finish Coated
Insert Size 433
Included Angle 80
Inscribed Circle 0.5000 Inch
Brand Sumitomo
Chipbreaker Type Coated Mini Tip
Max Depth of Cut 0.0150 Inch
Insert Style CNGA
Insert Type Negative
Material PCBN
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
