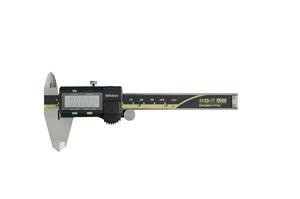

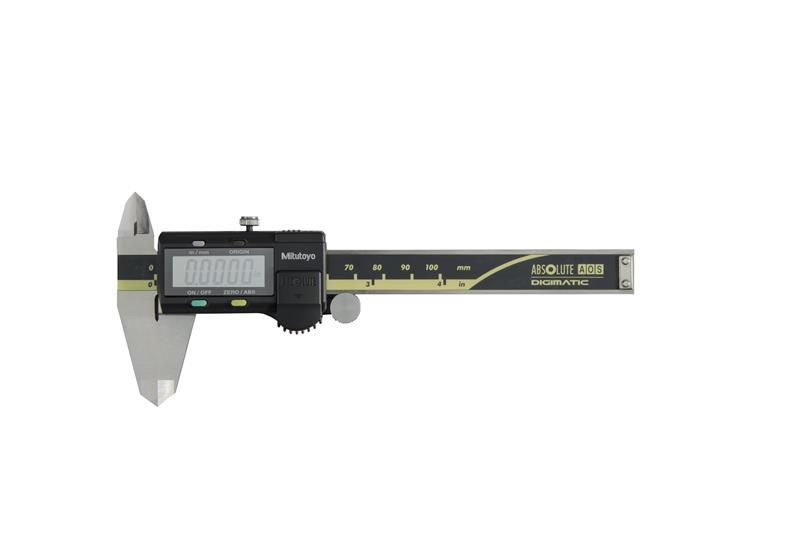

0-4 Inch(100mm), 0.0005 Inch(0.01mm), ABSOLUTE AOS Digimatic Caliper, With SPC Data Output, .075 Inch Round Depth Bar

  • Item Code: 500-170-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New electromagnetic inductive (AOS) sensor
    • ZERO/ABS key allows the display to be Zero-Set at any slider position
    • Large and clear LCD readout.

Tech Specs

Back To Top
Range 0 - 4 In/0 - 100mm
Primary Measuring Range Lower - Metric 0mm
Data Output Y
Primary (Outside Diameter) Contact Point Material Hardened Steel
Brand Mitutoyo
Contact Point Diameter .075 In (Depth Rod)
Data Output Cable - 80 inch 959150
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Data Output Cable - 40 inch 959149
Individual or Set Individual
Primary Measuring Range Upper - Inch 4 In
Resolution or Graduation .0005 In
Primary Measuring Range Upper - Metric 100mm
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Accuracy ±.001 In
Case Material Plastic Case
Case Part Number 05RAB235
