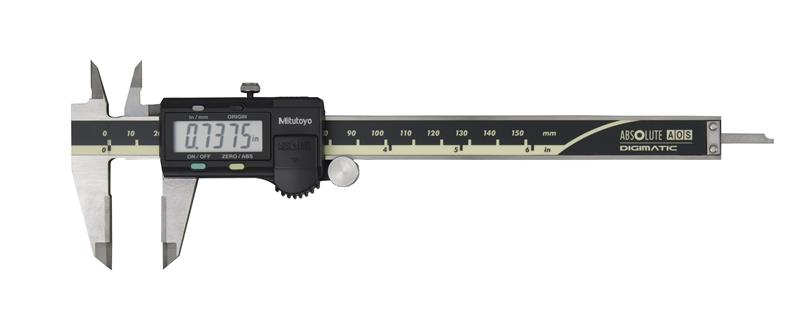

0-6 Inch(150mm), 0.0005 Inch(0.01mm), ABSOLUTE AOS Digimatic Caliper, With SPC Data Output, Carbide OD/ID Jaws

  • Item Code: 500-175-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New electromagnetic inductive (AOS) sensor
    • ZERO/ABS key allows the display to be Zero-Set at any slider position
    • Large and clear LCD readout.

Tech Specs

Back To Top
Data Output Y
Resolution or Graduation .0005 In
Secondary (Inside Diameter) Contact Point Material Carbide
Primary (Outside Diameter) Contact Point Material Carbide
Case Part Number 05RAB235
Case Material Plastic Case
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Inch 6 In
Primary Measuring Range Upper - Metric 150mm
Range 0 - 6 In/0 - 150mm
Data Output Cable - 40 inch 959149
Data Output Cable - 80 inch 959150
Individual or Set Individual
Primary Measuring Range Lower - Metric 0mm
Accuracy ±.001 In
Brand Mitutoyo
Depth Rod Shape Rectangular
Mechanical or Digital Digimatic
