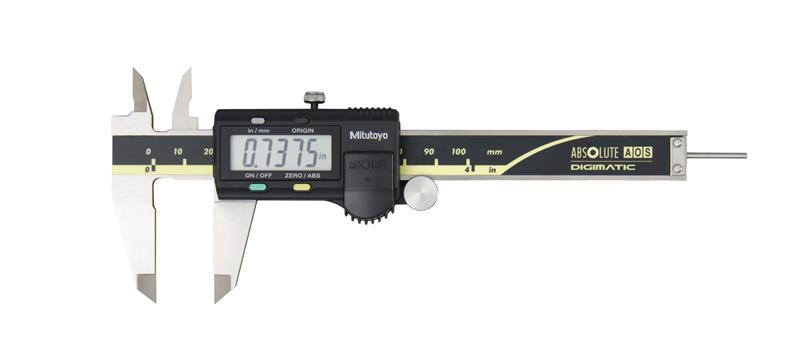

0-4 Inch(100mm), 0.0005 Inch(0.01mm), ABSOLUTE AOS Digimatic Caliper, No Output, .075 In Round Depth Bar

  • Item Code: 500-195-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New electromagnetic inductive (AOS) sensor
    • ZERO/ABS key allows the display to be Zero-Set at any slider position
    • Large and clear LCD readout.

Tech Specs

Back To Top
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Upper - Metric 100mm
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Metric 0mm
Brand Mitutoyo
Contact Point Diameter .075 In (Depth Rod)
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Range 0 - 4 In/0 - 100mm
Individual or Set Individual
Resolution or Graduation .0005 In
Accuracy ±.001 In
Case Material Plastic Case
Data Output N
Depth Rod Shape Round
Primary Measuring Range Upper - Inch 4 In
Case Part Number 05RAB235
