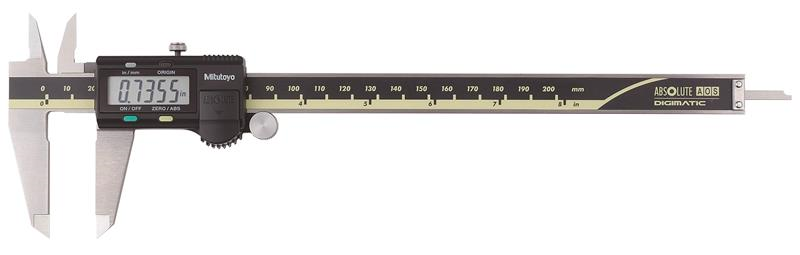

0-8 Inch(200mm), 0.0005 Inch(0.01mm), ABSOLUTE AOS Digimatic Caliper, No Output

  • Item Code: 500-197-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New electromagnetic inductive (AOS) sensor
    • ZERO/ABS key allows the display to be Zero-Set at any slider position
    • Large and clear LCD readout.

Tech Specs

Back To Top
Depth Rod Shape Rectangular
Case Part Number 05RAB350
Individual or Set Individual
Range 0 - 8 In/0 - 200mm
Accuracy ±.001 In
Brand Mitutoyo
Data Output N
Mechanical or Digital Digimatic
Primary Measuring Range Upper - Inch 8 In
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Resolution or Graduation .0005 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Metric 200mm
Case Material Plastic Case
Primary Measuring Range Lower - Inch 0 In
