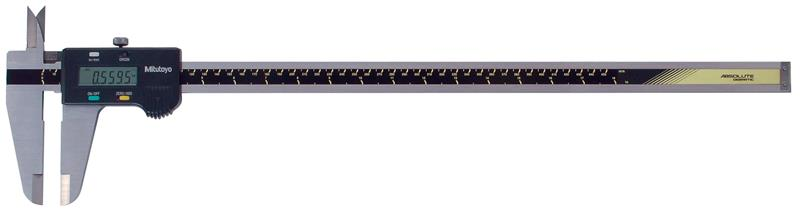

0-18 Inch(450mm), 0.0005 Inch(0.01mm), ABSOLUTE Digimatic Caliper, With SPC Data Output, No Thumb Roller

  • Item Code: 500-505-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Large and clear LCD readout.
    • The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incrmental comparison measurements.

Tech Specs

Back To Top
Case Part Number 146018
Primary Measuring Range Upper - Inch 18 In
Primary Measuring Range Lower - Metric 0mm
Case Material Plastic Case
Accuracy ±.002 In
Data Output Cable - 40 inch 959149
Individual or Set Individual
Primary Measuring Range Upper - Metric 450mm
Data Output Y
Primary (Outside Diameter) Contact Point Material Hardened Steel
Range 0 - 18 In/0 - 450mm
Brand Mitutoyo
Data Output Cable - 80 inch 959150
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Resolution or Graduation .0005 In
Secondary (Inside Diameter) Contact Point Material Hardened Steel
