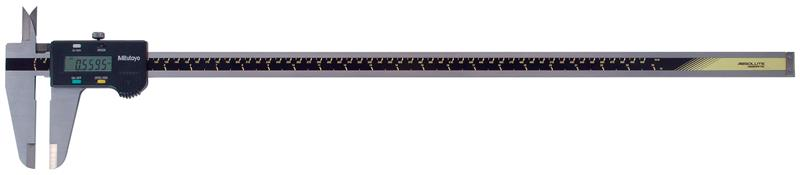

0-24 Inch(600mm), 0.0005 Inch(0.01mm) ABSOLUTE Digimatic Caliper, With SPC Data Output, No Thumb Roller

  • Item Code: 500-506-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Large and clear LCD readout.
    • The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incrmental comparison measurements.

Tech Specs

Back To Top
Case Part Number 144166
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Inch 24 In
Range 0 - 24 In/0 - 600mm
Resolution or Graduation .0005 In
Secondary (Inside Diameter) Contact Point Material Hardened Steel
Case Material Plastic Case
Primary Measuring Range Lower - Inch 0 In
Primary Measuring Range Upper - Metric 600mm
Brand Mitutoyo
Data Output Cable - 40 inch 959149
Data Output Cable - 80 inch 959150
Individual or Set Individual
Mechanical or Digital Digimatic
Accuracy ±.002 In
Data Output Y
