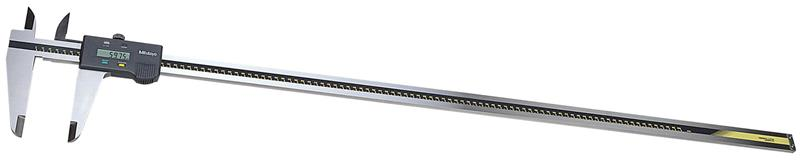

0-40 Inch(1000mm), 0.0005 Inch(0.01mm), ABSOLUTE Digimatic Caliper, With SPC Data Output, No Thumb Roller

  • Item Code: 500-507-10
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Large and clear LCD readout.
    • The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incrmental comparison measurements.

Tech Specs

Back To Top
Accuracy ±.003 In
Case Part Number 123997
Range 0 - 40/0 - 1000mm
Brand Mitutoyo
Case Material Wooden Case
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Data Output Y
Primary Measuring Range Upper - Metric 1000mm
Data Output Cable - 80 inch 959150
Data Output Cable - 40 inch 959149
Individual or Set Individual
Resolution or Graduation .0005 In
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Inch 40 In
Secondary (Inside Diameter) Contact Point Material Hardened Steel
